    Product Features
    Modern fashion design of appearance,made the light become an artwork,integrated with the environment perfectly,to made is as top project
    Die-cast aluminum body with powder-coating and anti-corrosion treatment
    Excellent heat radiation,optical and electrical ability
    Two type led chips and four type led drivers for choose
    Luminaire available from 60-200W
    Inpute Voltage:AC90-305V,50/60Hz.IP65,IK09
    5 years warranty
    Applications

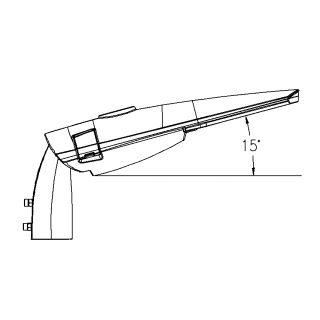

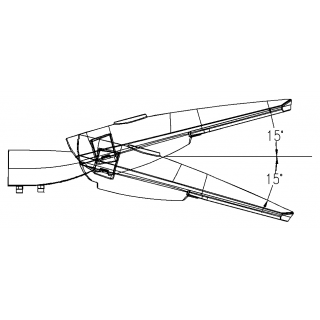

    Size Chart
    Specification
    Item NO. Power Lumen Product Size LED Chip 3030 1W Main Material LED Driver Color Temperature IP Grade Input Voltage Package information
                        Carton size Pc/Ctn GW NW
    ASL01B-80W 80W 100-130lm/w 738*289*118mm Philips 3030 108PCS Die Cast Aluminum Inventronics 75W 3000K-6500K IP65 AC 90-305V 790*36*191mm 1 6.3 KG 5.2KG
    ASL01B-100W 100W 738*289*118mm Philips 3030 108PCS Die Cast Aluminum Inventronics 96W 790*36*192mm 1 6.3 KG 5.2KG
